분리형기계사양
Item / Model DH-0500T DH-0750T DH-0100T DH-0150T
Size (WXDXH) Out Door 1300X900X1005 1300X900X1005 1400X900X1005 1400X1000X1005
Size (WXDXH) In Door 900X350X850 900X350X850 900X350X850

900X400X850
Cooling Capacity (Kcal/h) 6000 9000 12000 16000
Power Supply AC 3ph 440V 60HZ
Refrigerant R-124 / R-114
Compresor Type Semi-Hermetic Compressor
Compressor Output(KW) 3.75 5.5 7.5 11.25
Condenser Fin Cross Fin Coil Compressor
Condenser motor output(kw) AL.Copper Corrugated Fin
Condenser Fan type 0.75 0.75 1.5 1.5
Condenser Fan Dai(￠) 600 650 650 700
Evaporator Type Cross Fin Coil Type
Evaporator Fin AL.Copper Corrugated Fin
Evaporator Fan Type Sirocco Type
Evaporator Fan Motor(kw) 0.4 0.4 0.75 0.75
Weight (kg) 550 600 650 670
Safty Devices HPS. LPS. OPS. OCR, RPR, DGOP
상기 사양은 제품개발로 인하여 사전예고없이 변경될 수 있습니다.

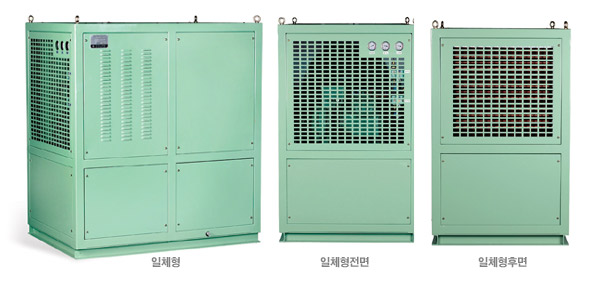

일체형기계사양
Item / Model DH-0500S DH-0750S DH-0100S DH-0150S
Size (WxDxH) 1300X900X1410 1300X900X1410 1400X1000X1545 1400X1000X1545
Cooling Capacity (Kcal/h) 6000 9000 12000 16000
Power Supply AC 3ph 440V 60HZ
Refrigerant R-124 / R-114
Compresor Type Semi-Hermetic Compressor
Compressor Output(KW) 3.75 5.5 7.5 11.25
Condenser Fin Cross Fin Compressor
Condenser motor output(kw) AL. Copper Corrugated Fin
Condenser Fan type 0.75 0.75 1.5 1.5
Condenser Fan Dai(￠) 600 600 650 650
Evaporator Type Cross Fin Coil Type
Evaporator Fin AL. Copper Corrugated Fin
Evaporator Fan Type Sirocco Type
Evaporator Fan Motor (kw) 0.4 0.4 0.75 0.75
Weight (kg) 550 600 650 670
Safty Devices HPS. LPS. OPS. OCR, RPR, DGOP
상기 사양은 제품개발로 인하여 사전예고없이 변경될 수 있습니다.
